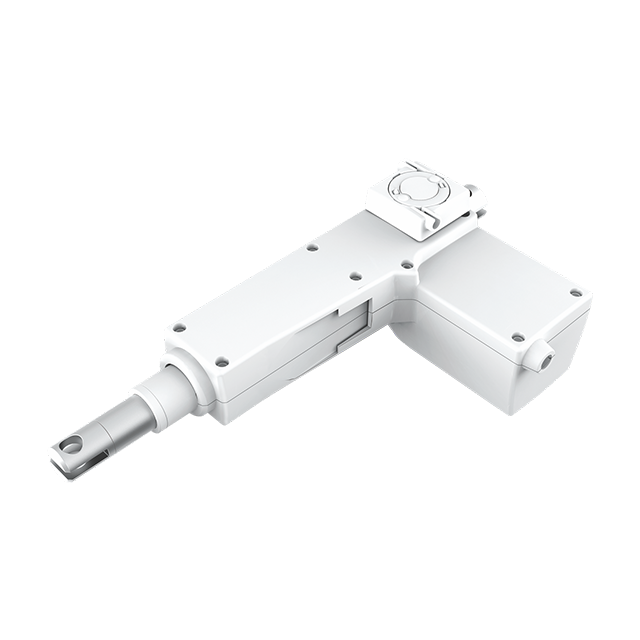

JC35B5-QH
· Max. load: 3000N· IP grade: IP54· Quick releaseLoad in push：3000N，2000N
Color:Gray/Black
IP grade: IPX4
Stroke length:
3000N：50-400mm（in steps of 4mm）
2000N：50-400mm（in steps of 4mm）
Installation dimensions:
L=S+177（50＜S≤400）
Lmin=283
Noise level: ≤45dB, ( environmental noise≤40dB)
Safety nut: optional
Hall sensor : optional
Reed switch: optional
Small signal function (match with JIECANG control box): optional
Built-in electrical limit switch.
Weight: About 2.3kg (different stroke length and installation dimensions with different weight )
Static bending moment: lateral load are not allowed.
