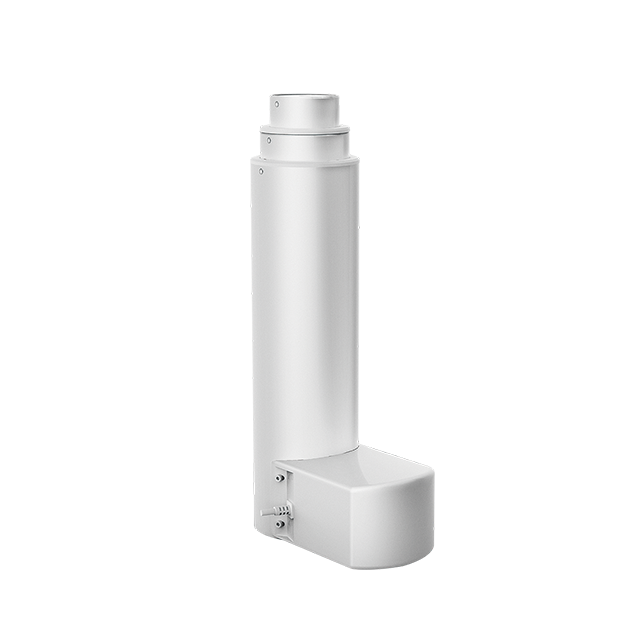

JC35EG
· Max. load: 2000N· IP grade: IPX4Max load in push &self-locking（N）：2000
Max static bending moment（Nm）：400
Max dynamic bending moment（Nm）：200
Max speed at full load（mm/s）:10(With 2000N in a push condition)
Installation dimensions：L=S/2+200
IP grade: IPX4
Approval：
EN 60601-1:2006+A12:2014
IEC60601-1 ： 2012Option:
With hall sensor(Apply for synchronize or memory function)
With aluminium holder for mounting
Max load in push &self-locking（N）：2000
Max static bending moment（Nm）：400
Max dynamic bending moment（Nm）：200
Max speed at full load（mm/s）:10(With 2000N in a push condition)
Installation dimensions：L=S/2+200
IP grade: IPX4
Approval：
EN 60601-1:2006+A12:2014
IEC60601-1 ： 2012Option:
With hall sensor(Apply for synchronize or memory function)
With aluminium holder for mounting
