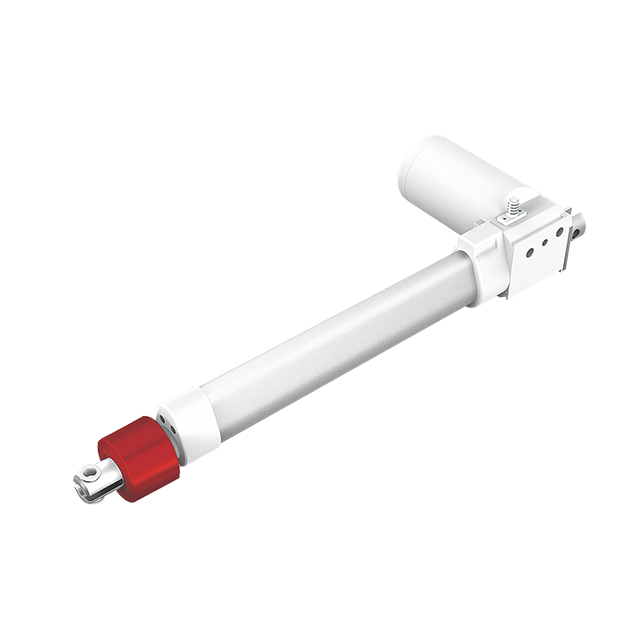

JC35K1
· Max. load: 8000N· IP grade: lP54· Suitable for patient liftLoad in push：8000N
Color: Gray
IP grade: IP54
Stroke length:8000N：50-300mm
Installation dimensions:L=S+260（S≤300）
Noise level: ≤48dB, ( environmental noise≤40dB)
Hall sensor : optional
Only push no pull option : optional
Manual operation: optional
Built-in electrical limit switch.
Weight: About 2kg (different stroke length and installation dimensions with different weight )
Static bending moment: lateral load are not allowed.
Load in push：8000N
Color: Gray
IP grade: IP54
Stroke length:8000N：50-300mm
Installation dimensions:L=S+260（S≤300）
Noise level: ≤48dB, ( environmental noise≤40dB)
Hall sensor : optional
Only push no pull option : optional
Manual operation: optional
Built-in electrical limit switch.
Weight: About 2kg (different stroke length and installation dimensions with different weight )
Static bending moment: lateral load are not allowed.
