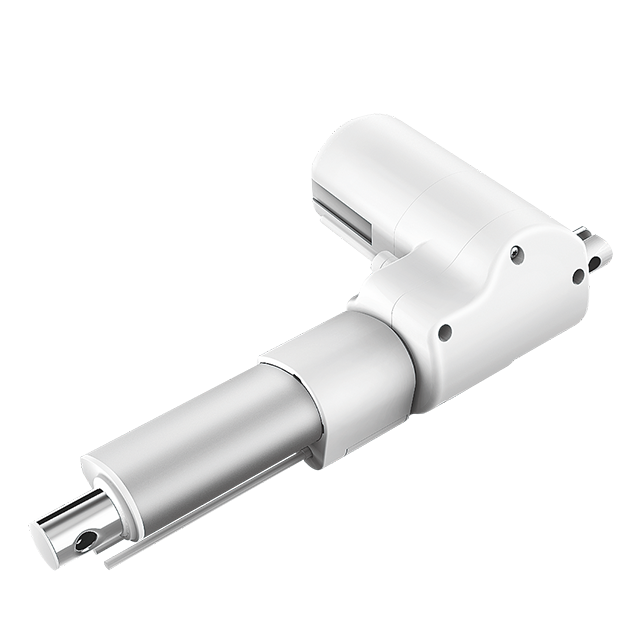

JC35L10

Load in push：4000N, 3000N

Color: Gray

IP grade: IP54

Stroke length:

4000N：30-400mm (in steps of 4mm)

3000N：30-400mm (in steps of 4mm)

Installation dimensions:

L=235（30≤S＜50）

L=S+185（50≤S≤400）

Noise level: ≤50dB, ( environmental noise≤40dB)

Safety nut: optional

Hall sensor : optional

Only push no pull : optional

Built-in electrical limit switch.

Weight: About 1.5kg (different stroke length and installation dimensions with different weight )

Static bending moment: lateral load are not allowed.
