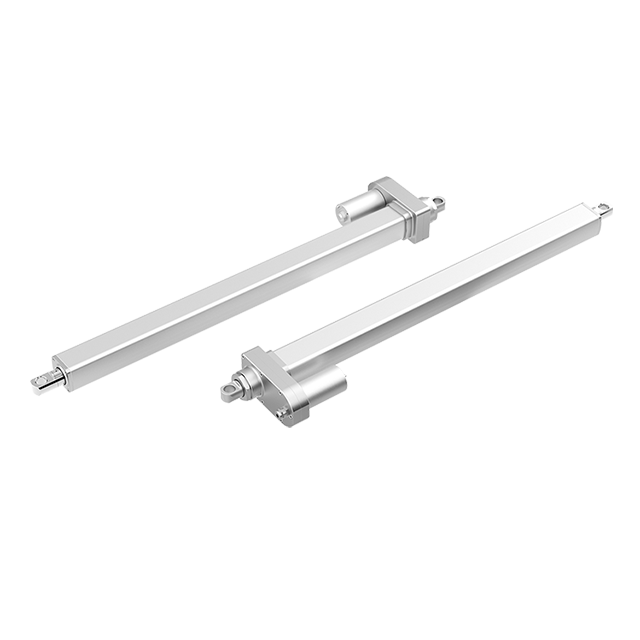

JC35SA5

· Max. load: 20000N
· Full load speed: 1.5mm/s
Verfügbarkeitsstatus:

  • Push-pull static load: static load 65kN (half stroke)

  • Push-pull load: 20kN

  • Working voltage: 24VDC

  • No-load speed: 2mm/s

  • No-load current: ≤1.5A

  • Full load current: ≤10A

  • Full load speed: 1.5mm/s

  • Effective stroke: 300-900±3mm optional

  • Shortest installation distance: S+360±3mm

  • Feedback signal: Hall*2


Datasheet
