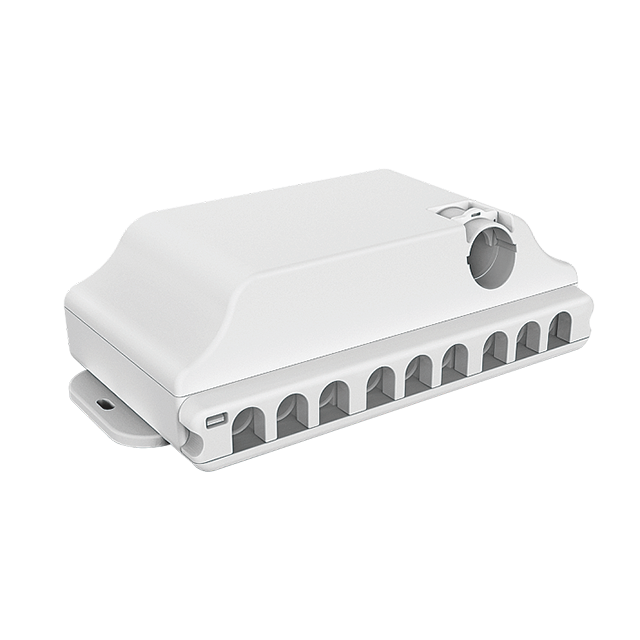

JCB35R
· Outputs for actuator: 1-7· IP grade: Max. IPX6· Power supply: SMPSPower: Input _ 100-240 VAC, 50/60 Hz; The output power is 200W in the rated state, and the output power is 320W in the working mode .
Power point light: Yes
Actuator interface: Max. 7 channels, 5-pin actuator straight plug
Hand controller interface: 1 channels, 8-pin actuator straight plug
Battery interface: 1 channels, 6-pin actuator straight plug
Standby power : maximum 1W (230V)
Color: gray
Control idea: relay, service life exceeds 20000 cycles
Duty cycle: 2/18min @ 25°C; On/off continuous use ( 320W at 25°C for 120 seconds)
Weight: 0.9kg
IP grade: Max. IPX6
Operation: synchronous drive
Single channel maximum current: 7 ± 0.5A
Power management: voltage management ensures maximum power operation and limits maximum output power
Safety system: thermal protection of switching power supply; over-current protection
Installation: bedstead (by screws)
Wire clip: all ports have.
Power: Input _ 100-240 VAC, 50/60 Hz; The output power is 200W in the rated state, and the output power is 320W in the working mode .
Power point light: Yes
Actuator interface: Max. 7 channels, 5-pin actuator straight plug
Hand controller interface: 1 channels, 8-pin actuator straight plug
Battery interface: 1 channels, 6-pin actuator straight plug
Standby power : maximum 1W (230V)
Color: gray
Control idea: relay, service life exceeds 20000 cycles
Duty cycle: 2/18min @ 25°C; On/off continuous use ( 320W at 25°C for 120 seconds)
Weight: 0.9kg
IP grade: Max. IPX6
Operation: synchronous drive
Single channel maximum current: 7 ± 0.5A
Power management: voltage management ensures maximum power operation and limits maximum output power
Safety system: thermal protection of switching power supply; over-current protection
Installation: bedstead (by screws)
Wire clip: all ports have.
